Chain links

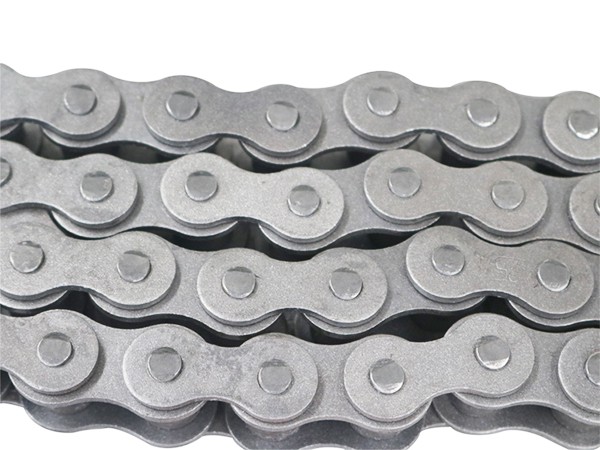

Chain links are the precision drive-edge components that connect metal conveyor belts to their drive systems. Working together with matching sprockets, they transmit motor torque evenly across the full belt width and maintain consistent belt tension throughout the conveying cycle. PFM Screen supplies a complete range of ISO- and ANSI-standard roller chains, hollow pin chains, and leaf chains in carbon steel, stainless steel, and alloy steel — configured to match any belt width, pitch, and load requirement.

Chain links

Chain Edge for Metal Conveyor Belts Enquiry Form

Overview
Specification
Applications
Downloads
FAQ

Chain links serve as the drive-edge components on all major metal conveyor belt types, including balanced spiral woven, chain link, eye link, compound weave, ladder, flexible rod, and honeycomb (flat wire) belts. Attached along each belt edge, they engage directly with drive sprockets to transmit motion precisely and maintain belt tension under load. Multiple ISO and ANSI pitch series, configuration options, and material grades are available — ensuring a precise match to any existing belt, sprocket, and operating environment.

Chain links

Chain links are available in carbon steel (standard industrial duty), stainless steel SS304 or SS316 (food processing and corrosive environments), and alloy steel (heavy-load or high-temperature applications). Pitch, roller diameter, inner plate width, strand count, and attachment type are all specified to match your existing conveyor belt and drive components exactly — ensuring drop-in replacement without modification to your conveyor frame or sprocket assembly.

Chain links

Chain link Types

Hollow pin roller chains

Double pitch roller chains

Cotter pin roller chain

Single pitch roller chains

Riveted pin roller chain

Leaf chains (BL/LH series)

Attachment chains

Material Availability

Chain links are available in the following material grades:
Carbon steel — standard duty for dry, non-corrosive general industrial environments.
Stainless steel SS304 — food-grade specification for food processing, baking, frying, freezing, and standard CIP washdown environments.
Stainless steel SS316 — marine-grade with added molybdenum; superior resistance to chlorides and aggressive sanitising chemicals. Recommended for seafood, dairy, and meat processing.
Alloy steel — for heavy-duty or elevated-temperature applications requiring higher tensile strength than carbon steel.
Other specifications available on request.

Specifications

A series short pitch precision roller chain

A series short pitch precision roller chain

ISO chain	ANSI chain	Pitch	Roller diameter	Width between inner plates	Bearing pin body diameter	Width over bearing pin	With over connecting pin	Inner Plate Depth	Transverse pitch	Plate thickness	Ultimate tensile strength	Average tensile strength	Weight per meter
		P	dl max	bl min	d2 max	L max	Lc max	h2 max	Pt	T	Q min	- Q	q
		mm	mm	mm	mm	mm	mm	mm	mm	mm	KN	KN	kg/m
*04C-1	25	6.35	3.3	3.1	2.31	8	9.9	6.02	-	0.8	3.5	4.4	0.14
*06C-1	35	9.525	5.08	4.68	3.58	12.4	14.4	8.7	-	1.3	7.9	10.4	0.33
285-1	41	12.7	7.77	6.25	3.58	13.75	16	9.91	-	1.25	6.7	11.8	0.41
08A-1	40	12.7	7.95	7.85	3.96	16.6	19.1	12.07	-	1.5	13.8	17.8	0.62
10A-1	50	15.875	10.16	9.4	5.08	20.7	23.3	15.09	-	2	21.8	28	1.02
12A-1	60	19.05	11.91	12.57	5.94	25.9	28.6	18.08	-	2.44	31.1	39	1.5
16A-1	80	25.4	15.88	15.75	7.92	32.7	38	24.13	-	3.26	55.6	71.5	2.6
20A-1	100	31.75	11.91	18.9	9.53	41.1	44.9	30.18	-	4	86.7	102	3.91
24A-1	120	38.1	15.88	25.22	11.1	50.8	56.1	36.2	-	4.8	124.6	156.9	5.62
28A-1	140	44.45	25.4	25.22	12.7	54.9	60.8	42.24	-	5.65	169	210.8	7.5
32A-1	160	50.8	28.58	31.55	14.27	65.5	72.6	48.26	-	6.45	222.4	269.7	10.1
36A-1	180	57.15	35.71	35.48	17.46	72.8	83	54.31	-	7.25	280.2	327.8	13.45
40A-1	200	63.5	39.68	37.85	19.85	80.3	90.5	6.33	-	8	347	410	16.15
48A-1	240	76.2	47.63	47.35	23.81	95.5	106	72.39	-	9.5	500.4	585.4	23.2
*04C-2	*25-2	6.35	3.3	3.1	2.31	14.5	16.5	6.02	6.4	0.8	7	8.8	0.28
*06C-2	*25-2	9.525	5.08	4.68	3.58	22.5	24.5	8.7	10.13	1.3	15.8	20.8	0.63
08A-2	40-2	12.7	7.95	7.85	3.96	31	33.5	12.07	14.38	1.5	27.6	35.6	1.12
10A-2	50-2	15.875	10.16	9.4	5.08	38.9	41.3	15.09	18.11	2	43.6	56	2
12A-2	60-2	19.05	11.91	12.57	5.94	48.8	51.5	18.08	22.78	2.44	62.3	82.4	2.92
16A-2	80-2	25.4	15.88	15.75	7.92	62.7	62.7	24.13	29.29	3.26	111.2	143	5.15
20A-2	100-2	.1.75	19.05	18.9	9.53	76.4	83.1	30.18	35.76	4	173.5	204.2	7.8
24A-2	120-2	.8.1	22.23	25.22	11.1	96.3	101.6	36.2	45.44	4.8	249.1	313.8	11.7
28A-2	140-2	44.45	25.4	25.22	12.7	103.6	109.4	42.24	48.87	5.65	338.1	421.7	15.14
32A-2	160-2	50.8	28.58	31.55	14.27	123.3	130.2	48.26	58.55	6.45	444.8	539.4	20.14
36A-2	180-2	57.15	35.71	35.48	17.46	138.6	148.5	54.31	65.84	7.25	560.5	655.7	29.22
40A-2	200-2	63.5	39.68	37.85	19.85	151.9	161.5	6.33	71.55	8	693.9	820	32.24
48A-2	240-2	76.2	47.63	47.35	23.81	183.4	193.9	72.39	87.83	9.5	1000.8	1170.8	45.23
*06C-3	*35-3	9.525	5.08	4.68	3.58	32.7	34.7	8.7	10.13	1.3	23.7	30	1.05
08A-3	40-3	12.7	7.95	7.85	3.96	45.4	48	12.07	14.38	1.5	41.4	51.2	1.9
10A-3	50-3	15.875	10.16	9.4	5.08	57	59.8	15.09	18.11	2	65.4	82	3.09
12A-3	60-3	19.05	11.91	12.57	5.94	71.5	75.6	18.08	22.78	2.44	93.4	115	4.54
16A-3	80-3	25.4	15.88	15.75	7.92	91.7	96.8	24.13	29.29	3.26	166.8	208	7.89
20A-3	100-3	31.75	19.05	18.9	9.53	112.2	117.2	30.18	35.76	4	260.2	310	11.77
24A-3	120-3	38.1	22.23	25.22	11.1	141.7	148.3	36.2	35.44	4.8	373.7	470.7	17.53
28A-3	140-3	44.45	25.4	25.22	12.7	152.2	158.3	42.24	48.87	5.65	507.1	632.5	22.2
32A-3	160-3	50.8	28.58	31.55	14.27	181.8	188.6	48.26	58.55	6.45	667.2	809	30.02
36A-3	180-3	57.15	35.71	35.48	17.46	204.4	214.5	54.31	65.84	7.25	840.7	983.6	38.22
40A-3	200-3	63.5	39.68	37.85	19.85	223.5	232.9	60.33	71.55	8	1040.9	1230	49.03
48A-3	240-3	76.2	47.63	47.35	23.81	271.2	281.8	72.39	87.83	9.5	1501.3	1756.2	71.6

B series short pitch precision roller chain

B series short pitch precision roller chain

ISO BS chain No.	Pitch	Roller diameter	Width between Inner plates	Bearing pin body diameter	Width over bearing pin	With over connecting pin	Inner Plate Depth	Transverse pitch	Ultimate tensile strength	Average tensile strength	Weight per meter
	P	dl max	bl min	d2 max	L max	Lc max	h2 max	Pt	Q min	- Q	q
	mm	mm	mm	mm	mm	mm	mm	mm	KN	KN	kg/m
*06B-1	9.525	6.35	5.72	3.28	13.15	15.15	8.26	-	8.9	10.3	0.41
08B-1	12.7	8.51	7.75	4.45	16.95	19.05	11.81	-	17.8	19.6	0.69
10B-1	15.875	10.16	9.65	5.08	19.5	22	14.73	-	22.2	27.5	0.93
12B-1	19.05	12.07	11.68	5.72	22.5	25.1	16.13	-	28.9	33.3	1.15
16B-1	25.4	15.88	17.02	8.28	36.1	41.5	21.08	-	60	71	2.71
20B-1	31.75	19.05	19.58	10.19	42.4	47.6	26.42	-	95	101.8	3.7
24B-1	38.1	25.4	25.4	14.63	53.4	60	33.4	-	160	176	7.1
28B-1	44.45	27.94	30.99	15.9	65.1	72.5	37.08	-	200	215.6	8.5
32B-1	50.8	29.21	30.99	17.81	66.91	73.6	42.29	-	250	280.3	10.25
40B-1	63.5	39.37	38.1	22.89	82.6	91.3	52.96	-	355	392	16.35
48B-1	76.2	48.26	45.72	29.24	99.1	109.6	63.88	-	560	599.2	25
*06B-2	9.525	6.35	5.72	3.28	23.4	27.1	8.26	10.24	16.9	18.1	0.74
08B-2	12.7	8.51	7.75	4.45	31	33	11.81	13.92	31.1	37.4	1.34
10B-2	15.875	10.16	9.65	5.08	36.1	38.6	14.73	16.59	44.5	54.2	1.84
12B-2	19.05	12.07	11.68	5.72	42	44.4	16.13	19.46	57.8	66.6	2.31
16B-2	25.4	15.88	17.02	8.28	68	73.4	21.08	31.88	106	126.5	5.42
20B-2	31.75	19.05	19.58	10.19	79.7	83.6	26.42	36.45	170	210	7.2
24B-2	38.1	25.4	25.4	14.63	101.4	108.4	33.4	48.36	280	305	13.4
28B-2	44.45	27.94	30.99	15.9	124.7	132.1	37.08	59.56	360	390	16.6
32B-2	50.8	29.21	30.99	17.81	125.46	132.4	42.29	58.55	450	487.5	21
40B-2	63.5	39.37	38.1	22.89	154.5	163.8	52.96	72.29	630	680.2	32
48B-2	76.2	48.26	45.72	29.24	192.4	200.9	63.88	91.21	1000	1070	20
*06B-3	9.525	6.35	5.72	3.28	33.5	37.3	8.26	10.24	24.9	29.8	1.16
08B-3	12.7	8.51	7.75	4.45	44.9	47.2	11.81	13.92	44.5	50.2	2.03
10B-3	15.875	10.16	9.65	5.08	52.7	55.6	14.73	16.59	66.7	79.8	2.77
12B-3	19.05	12.07	11.68	5.72	61.5	65.2	16.13	19.46	86.7	101.8	3.46
16B-3	25.4	15.88	17.02	8.28	99.8	105.3	21.08	31.88	160	190	8.13
20B-3	31.75	19.05	19.58	10.19	114.55	121.2	26.42	36.45	250	276.2	10.82
24B-3	38.1	25.4	25.4	14.63	150.2	156.8	33.4	48.36	425	480	20.1
28B-3	44.45	27.94	30.99	15.9	184.3	191.7	37.08	59.56	530	580	24.92
32B-3	50.8	29.21	30.99	17.81	184.01	191	42.29	58.55	670	720.2	31.56
40B-3	63.5	39.37	38.1	22.89	226.8	236.1	52.96	72.29	950	1020	48.1
48B-3	76.2	48.26	45.72	29.24	281.6	292.1	63.88	91.21	1500	1590	75

Double pitch conveyor chain

Chain links

DIN ISO chain No.	ANSI chain No.	Pitch	roller diameter	Width between inner plates	pin diameter	pin Length		In Plate Depth	Ultimate tensile strength	Average tensile strength	Weight per meter
		P	dl max	bl min	d2 max	L max	Lc max	h2 max	Q min	Qo	q
		mm	mm	mm	mm	mm	mm	mm	KN	KN	kg/m
C208A	C2040	25.4	7.95	7.85	3.96	16.6	18.8	12	14.1	16	0.5
C208AL	C2042	25.4	15.88	7.85	3.96	16.6	18.8	12	14.1	16	0.84
C208B		25.4	8.51	7.75	4.45	16.7	18.2	11.8	18	19.3	0.55
C208BL		25.4	15.88	7.75	4.45	16.7	18.2	11.8	18	19.3	0.89
C210AL	C2052	31.75	19.05	9.4	5.08	20.7	23.3	15	22.2	26.5	1.27
C212A	C2060	38.1	11.91	12.57	5.94	25.9	28.3	18	31.8	35.5	1.12
C212AL	C2062	38.1	22.23	12.57	5.94	25.9	28.3	18	31.8	35.5	1.61
C212AH	C2060H	38.1	11.91	12.57	5.94	29.2	31.6	18	31.8	39.3	1.44
C212AHL	C2062H	38.1	22.23	12.57	5.94	29.2	31.6	18	31.8	39.3	2.07
C216A	C2080	50.8	15.88	15.75	7.92	32.7	36.5	24	56.7	66.2	2.08
C212AL	C2082	50.8	28.58	15.75	7.92	32.7	36.5	24	56.7	66.2	3.12
C216AH	C2080H	50.8	15.88	15.75	7.92	36.2	39.4	24.4	56.7	68.8	2.54
C216AHL	C2082H	50.8	28.58	15.75	7.92	36.2	39.4	24.4	56.7	68.8	3.58
C220A	C2100	63.5	19.05	18.9	9.53	40.4	44.7	30	88.5	103.6	3.01
C220AL	C2102	63.5	39.67	18.9	9.53	40.4	44.7	30	88.5	103.6	4.83
C220AH	C2100H	63.5	19.05	18.9	9.53	43.6	46.9	30	88.5	106.6	3.56
C220AHL	C2102H	63.5	39.67	18.9	9.53	43.6	46.9	30	88.5	106.6	5.38
C224A	C2120	76.2	22.23	25.22	11.1	50.3	54.3	35.7	127	147	4.66
C224AL	C2122	76.2	44.45	25.22	11.1	50.3	54.3	35.7	127	147	7.66
C224AH	C2120H	76.2	22.23	25.22	11.1	53.5	57.5	36.2	127	151.2	5.26
C224AHL	C2122H	76.2	44.45	25.22	11.1	53.5	57.5	36.2	127	151.2	8.26
C232A	C2160	101.6	28.58	31.75	14.27	64.8	69.6	47.8	226.8	260.2	8.23
C232AL	C2162	101.6	57.15	31.75	14.27	64.8	69.6	47.8	226.8	260.2	11.95
C232AH	C2160H	101.6	28.58	31.75	14.27	68.2	73	47.8	226.8	266.8	9.06
C232AHL	C2162H	101.6	57.15	31.75	14.27	68.2	73	47.8	226.8	266.8	12.77

Hollow pin chain

Hollow pin chain

Tailong chain No	Pitch	Bush diameter	Width between inner plates	Bearing pin body diameter		Width over bearing ping		Inner Plate Depth	Plate thickness	Ultimate tensile strength	Average tensile strength	Weight per meter	Type form
	P	d1 min	bl max	d3 max	h2 max	L max	Lc max	h2 max	t/T max	Q min	Q	q
	mm	mm	mm	mm	mm	mm	mm	mm	mm	KN	KN	Kg/m
08BHPF	12.7	8.51	7.75	6.55	4.5	16.4	17.6	11.8	1.6/1.3	11.1	12.1	0.56	A
40HP	12.7	7.95	7.85	5.63	4	16.5	17.6	12	1.5	11	12.2	0.54	A
50HP	15.875	10.16	9.4	7.03	5.13	20.7	21.9	15.09	2.03	20.02	22.6	0.91	A
60HP	19.05	11.91	12.7	8.31	6	25.8	26.8	18	2.42	24	26.9	1.29	A
60HPF1	19.05	11.91	12.7	8.31	5.01	25.5	26.8	18	2.42	28	30.9	1.37	A
80HP	25.4	15.88	15.75	11.4	8.05	32.5	33.8	24	3.25	50	58.3	2.26	A

Chain links

Tailong chain No	Pitch	Bush diameter	Width between inner plates	Bearing pin diameter		Width over bearing pin		Inner Plate Depth	Plate thickness	Ultimate tensile strength	Average tensile strength	Weight per meter	Type form
	P	d1	bl	d2 max	d3 max	L max	Lc max	h2 max	t/T max	Q min	Q	q
	mm	mm	mm	mm	mm	mm	mm	mm	mm	KN	KN	kg/m
C2040HP	25.4	7.95	7.85	5.63	4	16.5	17.6	12	1.5	11	12.6	0.46	B
C2042HP	25.4	15.88	7.85	5.63	4	16.5	17.6	12	1.5	11	12.6	0.46	B
C2050HP	31.75	10.16	9.4	7.22	5.12	20.5	21.8	15	2.03	20.4	22.8	0.76	B
C2052HP	31.75	19.05	9.4	7.22	5.12	20.5	21.8	15	2.03	20.4	22.8	0.76	B
C2060HP	38.1	11.91	12.7	8.31	6	25.8	26.8	17	2.42	24	27.1	1.02	B
C2062HP	38.1	22.23	12.7	8.31	6	25.8	26.8	17	2.42	24	27.1	1.02	B
C2080HP	50.8	15.88	15.75	11.4	8.05	32.5	33.8	24	3.25	50	55.2	1.81	B
C2082HP	50.8	28.58	15.75	11.4	8.05	32.5	33.8	24	3.25	50	55.2	1.81	B

Leaf Chain

Leaf Chain

ISO chain No.	ANSI chain No.	Pitch	Platrs Lacing	Plate Depth	Plate thickness	pin diameter	pin Length	Ultimate tensile strength	Average tensile strength	Weight per meter
		P		h2 max	T max	d2 max	L max	Q max	Qq	q
		mm		mm	mm	mm	mm	KN	KN	kg/m
LH0822	BL422		2 × 2				11.05	22.2	27.6	0.64
LH0823	BL423		2 × 3				13.16	22.2	27.6	0.8
LH0834	BL434		3 × 4				17.4	33.4	41.4	1.12
LH0844	BL444	12.7	4 × 4	12.07			19.51	44.5	56	1.26
LH0846	BL446		4 × 6				23.75	44.5	56	1.6
LH086646	BL466		6 × 6				27.99	66.7	81.7	1.92
LH0888	BL488		8 × 8				36.45	89	109.4	2.56
LH1022	BL522		2 × 2				12.9	33.4	42.8	0.88
LH1023	BL523		2 × 3				15.37	33.4	42.8	1.1
LH1034	BL534		3 × 4				20.32	48.9	63.6	1.5
LH1044	BL544	15	4 × 4	15.09	2.44	5.96	22.78	66.7	84.5	1.8
LH1046	BL546		4 × 6				27.74	66.7	84.5	2.2
LH1066	BL566		6 × 6				32.69	100.1	125.1	2.65
LH1088	BL588		8 × 8				42.57	133.4	169.5	3.5
LH1222	BL622		2 × 2				17.37	48.9	63.6	1.45
LH1223	BL623		2 × 3				20.73	48.9	63.6	1.8
LH1234	BL634		3 × 4				27.43	75.6	102.6	2.5
LH1244	BL 644	875	4 × 4	18.11	3.3	7.94	30.78	97.9	122.3	2.9
LH1246	BL 646		4 × 6				37.49	97.9	122.3	3.6
LH1266	BL666		6 × 6				44.2	146.8	190.8	4.3
LH1288	BL688		8 × 8				57.61	195.7	238.8	5.8
LH1622	BL822		2 × 2				21.34	84.5	108.2	2.2
LH1623	BL823		2 × 3				25.48	84.5	108.2	2.7
LH1634	BL834		3 × 4				33.76	129	143.6	3.8
LH1644	BL844	19.05	4 × 4	24.13	4.09	9.54	37.9	169	214.6	4.3
LH1646	BL846		4 × 6				46.18	169	214.6	5.4
LH1666	BL866		6 × 6				54.46	253.6	324.5	6.5
LH1688	BL888		8 × 8				17.02	338.1	432.7	8.6
LH2022	BL1022		2 × 2				25.37	115.6	146.8	3.4
LH2023	BL1023		2 × 3				30.33	115.6	146.8	4.3
LH2034	BL1034		3 × 4				40.23	182.4	231.6	6
LH2044	BL1044	25.4	4 × 4	30.18	4.9	11.11	45.19	231.3	291.4	6.9
LH2046	BL1046		4 × 6				55.09	231.3	291.4	8.6
LH2066	BL1066		6 × 6				65	347	430.3	10.3
LH2088	BL1088		8 × 8				84.81	462.6	555.1	13.8
